SHIP DESIGN
Delivered Ship Design since 1974
Polarkonsult has since 1974 delivered design for a variety of vessels, from smaller fishing vessels and passenger ships to larger cargo carriers, heavy lifters and tankers. As an independant designer we offer you tailor made designs that meets your specifications
Among our proud contributions are the PK-100 series for cargo vessels, the PK-200 series designed for passenger vessels, the PK-300 series catering to offshore vessels and tugboats, the PK-400 series for special service vessels, the PK-500 series focusing on fishing vessels, and the PK-600 series dedicated to tankers
We are an independent ship design company, which makes us flexible and productive

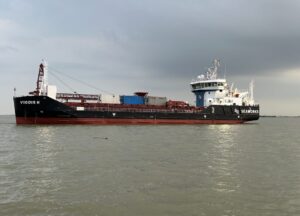

PK-164-LNG: Vigdis H
Designed by: Polarkonsult AS | Client: Seaworks AS
Technical Data
General data about the design & design highlights
PK-164-LNG EcoBulk is a specialized ship for bulk cargo transportation. It is equipped as a self-discharger with an electric excavator and conveyor belt for direct delivery of products to the contruction site.
The bridge is equipped with the latest technology in navigation and communication. All navigation and communication equipment is able to satisfy GMDSS, sea area 3.
75,50 m
Length overall
16,50 m
Beam, mid
7.10 m
Depth to main deck
5,72 m
Max draught
3900 t
Deadweight
10 kn
Service speed
4500 cbm
Cargo hold
923 kWh
Battery pack
PK-164-LNG: Vigdis H
Designed by: Polarkonsult AS | Client: Seaworks AS
Technical Data
General data about the design & design highlights
PK-164-LNG EcoBulk is a specialized ship for bulk cargo transportation. It is equipped as a self-discharger with an electric excavator and conveyor belt for direct delivery of products to the contruction site.
The bridge is equipped with the latest technology in navigation and communication. All navigation and communication equipment is able to satisfy GMDSS, sea area 3.
75,50 m
Length overall
16,50 m
Beam, mid
7.10 m
Depth to main deck
5,72 m
Max draught
3900 t
Deadweight
10 kn
Service speed
4500 cbm
Cargo hold
923 kWh
Battery pack
Our latest PK-200 design:
PK-259.1: Herjólfur IV
Designed by: Polarkonsult AS
Technical Data
The ferry is in operation between Landeyjahöfn and Vestmannaeyjar (eng. Westman Islands), a town and archipelago situated off the south coast of Iceland.
The weather conditions outside Landeyjahöfn are difficult with a mixture of long ocean waves and shorter coastal waves in combination with strong transversal current at the entry of the harbor. The water depth is only 4,5 m and the ferry is operating in up to 3,5 m waves. These conditions require excellent maneuverability and shallow water seakeeping characteristic, which the vessel fulfills successfully.
69.38 m
Length overall
15.10 m
Beam, extreme
5.10 m
Depth to main deck
2.8 m
Design draught
315 t
Deadweight
15.6 kn
Service speed
540/390
Passengers – Summer/winter
330 m
Lane capacity
Our latest PK-200 design:
PK-259.1: Herjólfur IV
Designed by: Polarkonsult AS
Technical Data
The ferry is in operation between Landeyjahöfn and Vestmannaeyjar (eng. Westman Islands), a town and archipelago situated off the south coast of Iceland.
The weather conditions outside Landeyjahöfn are difficult with a mixture of long ocean waves and shorter coastal waves in combination with strong transversal current at the entry of the harbor. The water depth is only 4,5 m and the ferry is operating in up to 3,5 m waves. These conditions require excellent maneuverability and shallow water seakeeping characteristic, which the vessel fulfills successfully.
69.38 m
Length overall
15.10 m
Beam, extreme
5.10 m
Depth to main deck
2.8 m
Design draught
315 t
Deadweight
15.6 kn
Service speed
540/390
Passengers – Summer/winter
330 m
Lane capacity
Our latest PK-300 design:
PK-145: Elektron
Designed by: Polarkonsult AS
Technical Data
“Elektron” is specially designed for the transport of large and heavy objects such as transformers, but will also be available for other missions. “Elektron” can take a total deck load of 2,000 tonnes. Certain points are reinforced to withstand 90 tonnes in just 40 square centimeters. The ship can be trimmed with ballast water to ground into shallow water. With a fold-down ramp (loading limb), the ship can easily load and unload transformers and other large items. The driving ramp can withstand an axle pressure of 30 tonnes and a total weight of 500 tonnes.
Propulsion is diesel-electric and the ship is equipped with a dynamic positioning system.
87.35 m
Length overall
17.80 m
Beam
6.50 m
Depth to main deck
3.0 m
Design draught
3500 t
Deadweight
12 kn
Service speed
9/35 pers
Crew/Cabin Capacity
2000 t
Deck load
Our latest PK-300 design:
PK-145: Elektron
Designed by: Polarkonsult AS
Technical Data
“Elektron” is specially designed for the transport of large and heavy objects such as transformers, but will also be available for other missions. “Elektron” can take a total deck load of 2,000 tonnes. Certain points are reinforced to withstand 90 tonnes in just 40 square centimeters. The ship can be trimmed with ballast water to ground into shallow water. With a fold-down ramp (loading limb), the ship can easily load and unload transformers and other large items. The driving ramp can withstand an axle pressure of 30 tonnes and a total weight of 500 tonnes.
Propulsion is diesel-electric and the ship is equipped with a dynamic positioning system.
87.35 m
Length overall
17.80 m
Beam
6.50 m
Depth to main deck
3.0 m
Design draught
3500 t
Deadweight
12 kn
Service speed
9/35 pers
Crew/Cabin Capacity
2000 t
Deck load
Our latest PK-400 design:

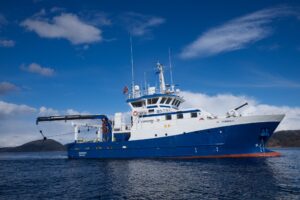

PK-410.1 Gunnerus
Designed by: Polarkonsult AS
Technical Data
The vessel is designed for a number of research activities; oceanographic research, marine technology, marine geology, fisheries research, marine biology, fish farm operations, etc. She is fitted with Kongsberg SDP-11 Dyn Pos system and HiPap 500 unit.
The vessel is arranged with wet lab, dry lab and a data lab. Accommodation comprises three single berth crews cabins, three double berth scientific personnel cabins as well as a large mess room /conference room for 25 persons.
The diesel electric system has been specially designed for low hydroacoustic noise levels. Diesel generators are mounted on a common double elastic frame and one of the generators are mounted in a noise dampening hood for special low noise mode.
36.25 m
Length overall
9.60 m
Beam moulded
4.2 m
Depth to main deck
2.50 m
Design draught
164 t
Deadweight
12.5 kn
Cruise speed
15 pers
Crew
25 pers
Daytime personnel capacity
Our latest PK-400 design:
PK-410.1 Gunnerus
Designed by: Polarkonsult AS
Technical Data
The vessel is designed for a number of research activities; oceanographic research, marine technology, marine geology, fisheries research, marine biology, fish farm operations, etc. She is fitted with Kongsberg SDP-11 Dyn Pos system and HiPap 500 unit.
The vessel is arranged with wet lab, dry lab and a data lab. Accommodation comprises three single berth crews cabins, three double berth scientific personnel cabins as well as a large mess room /conference room for 25 persons.
The diesel electric system has been specially designed for low hydroacoustic noise levels. Diesel generators are mounted on a common double elastic frame and one of the generators are mounted in a noise dampening hood for special low noise mode.
36.25 m
Length overall
9.60 m
Beam moulded
4.2 m
Depth to main deck
2.50 m
Design draught
164 t
Deadweight
12.5 kn
Cruise speed
15 pers
Crew
25 pers
Daytime personnel capacity
Our latest PK-500 design:
PK-588
Designed by: Polarkonsult AS
Technical Data
The vessel will be constructed in accordance with high-quality Norwegian shipbuilding standards, ensuring adherence to the NS 6038 Accuracy in Hull Construction guidelines for steelwork.
The vessel will feature two continuous decks, namely the 2nd deck and the 1st deck. A forward superstructure will be incorporated, comprising a deckhouse and a wheelhouse situated atop it.
35.25 m
Length overall
9.20 m
Beam, extreme
6.50 m
Depth to main deck
3.50 m
Design draught
210 t
Deadweight
12 kn
Service speed
10 pers
Crew
3.90 m
Max loaded drought
Our latest PK-500 design:
PK-588
Designed by: Polarkonsult AS
Technical Data
The vessel will be constructed in accordance with high-quality Norwegian shipbuilding standards, ensuring adherence to the NS 6038 Accuracy in Hull Construction guidelines for steelwork.
The vessel will feature two continuous decks, namely the 2nd deck and the 1st deck. A forward superstructure will be incorporated, comprising a deckhouse and a wheelhouse situated atop it.
35.25 m
Length overall
9.20 m
Beam, extreme
6.50 m
Depth to main deck
3.50 m
Design draught
210 t
Deadweight
12 kn
Service speed
10 pers
Crew
3.90 m
Max loaded drought
Our latest PK-600 concept:
PK-620 Blue line
Designed by: Polarkonsult AS
Technical Data
The vessels function is transportation of chemical and/or oil products, IMO type II and III liquid cargo in bulk, in 26 segregated tanks plus residue tanks on deck.
Due to the vessels special transportation purpose, hull lines and main propulsion systems shall be optimized for a service speed of 14 knots at a maximum Dwt.
182.90 m
Length overall
26.50 m
Beam, extreme
16 m
Depth to main deck
11 m
Design draught
34000 t
Deadweight max loaded
14.5 kn
Service speed
30 pers
Crew
11 m
Max loaded drought
Our latest PK-600 concept:
PK-620 Blue line
Designed by: Polarkonsult AS
Technical Data
The vessels function is transportation of chemical and/or oil products, IMO type II and III liquid cargo in bulk, in 26 segregated tanks plus residue tanks on deck.
Due to the vessels special transportation purpose, hull lines and main propulsion systems shall be optimized for a service speed of 14 knots at a maximum Dwt.
182.90 m
Length overall
26.50 m
Beam, extreme
16 m
Depth to main deck
11 m
Design draught
34000 t
Deadweight max loaded
14.5 kn
Service speed
30 pers
Crew
11 m
Max loaded drought
